Installation

Steering AI is split into four main folders.

• Packages/SteeringAI/Runtime/Core - The core of the framework. It is responsible for taking SteeringSystemAsset prepared in the editor and running its jobs.
• Packages/SteeringAI/Runtime/Defaults - Contains implementation of several behaviors as well as movement systems and other utilities.
• Packages/SteeringAI/Editor - Handles editting of the SteeringSystemAsset in editor.
• Assets/Samples/SteeringAI - Contains sample scenes which showcase the usage of the framework with behaviors and movement systems from Defaults.

1) Importing Samples

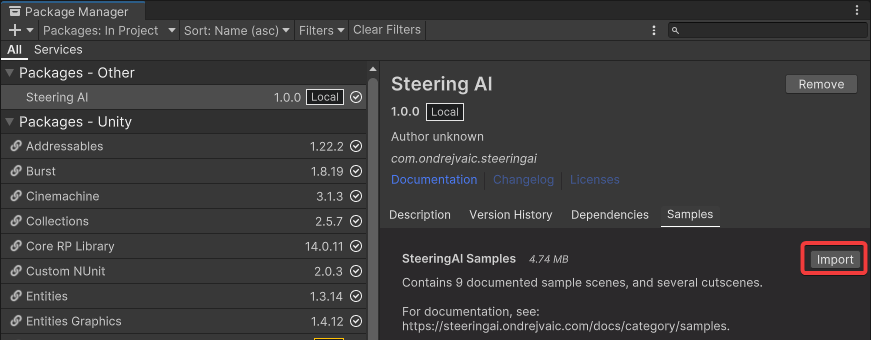

The samples can be imported in the package manager as shown below.

2) Add a STEERING_DEBUG symbol

Add a script define symbol STEERING_DEBUG. This will allow you to debug the behaviors.

tip

For a slight performance increase, make sure to remove the symbol before releasing your project.

1. Navigate to Project Settings/Player/Other Settings
2. Add STEERING_DEBUG
3. Click apply

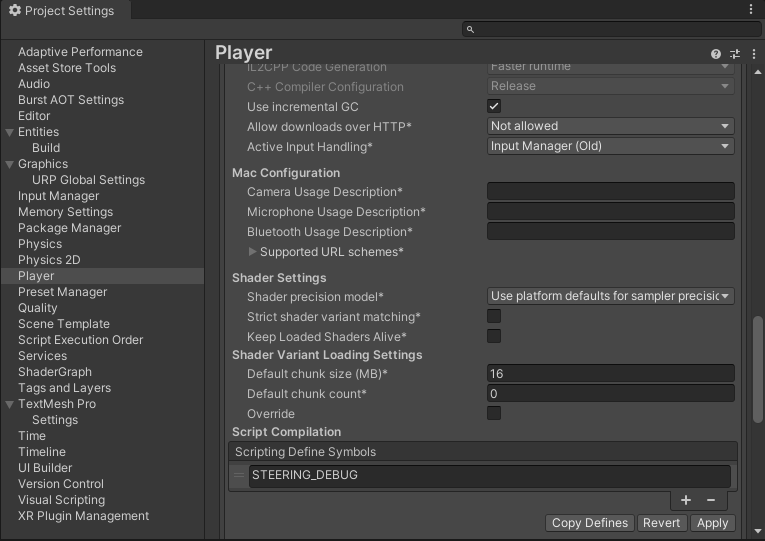

Adding STEERING_DEBUG into script define symbols.

3) Initialize Samples

After importing the project, you need to mark all SteeringSystemAsset as Addressable.

1. Search for t:SteeringSystemAsset in the Project window and select all of them.
2. In the inspector check Addressable on all the assets.

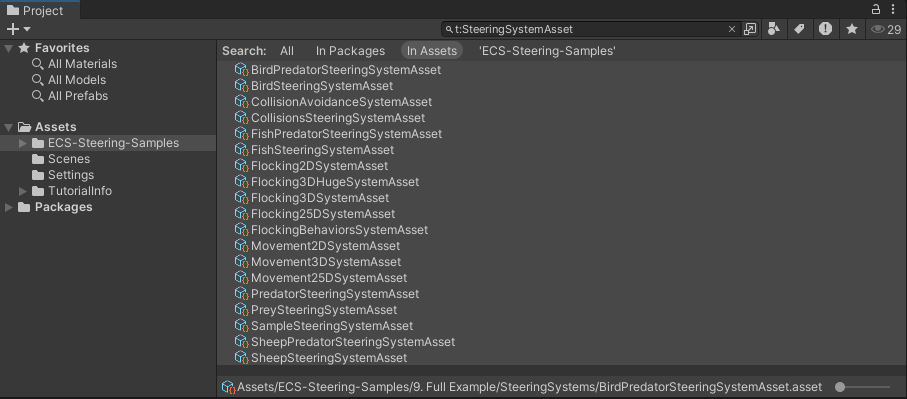

Locating all instances of SteeringSystemAsset.

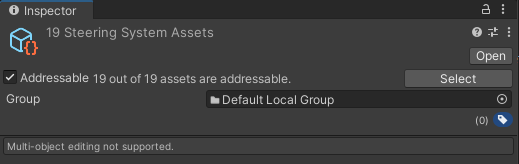

Marking the assets as Addressable.

4) Set Renderer to Forward+

The samples use com.unity.entities.graphics to draw the entities. To ensure proper set up, you need to use Forward+ rendering.

1. Search for t:UniversalRendererData.
2. Set RenderingPath to Forward+ on all of them.

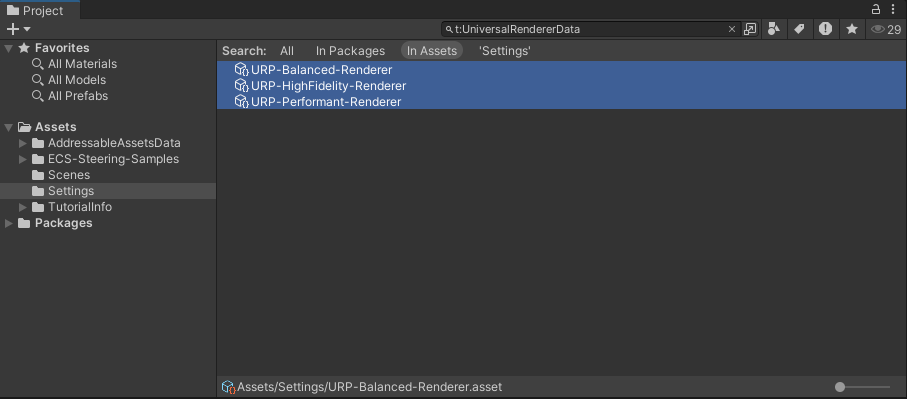

Locating all instances of UniversalRendererData.

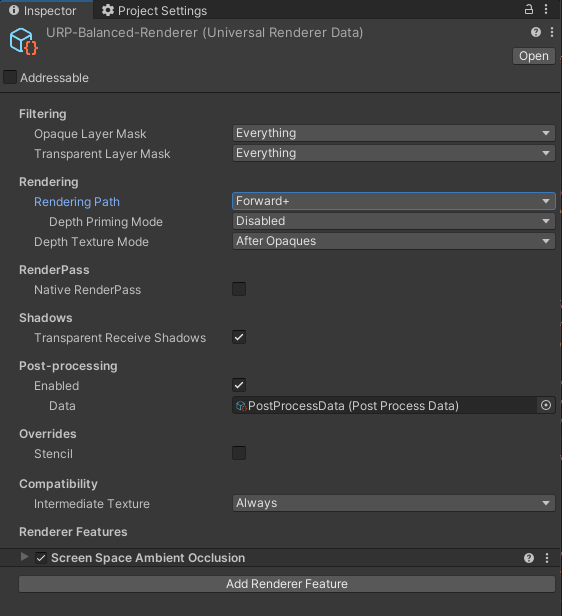

Instance of UniversalRendererData with Forward+ selected.

5) Test

Open the sample scene at Samples/SteeringAI/1.0.0/SteeringAI Samples/1. Minimal Set Up/SampleScene.unity and run it. The entities in the scene should start moving forward.
